Standard Microscope Slides

Introduction

　　Microscope slides are available in standard sizes: 1.0-1.2 mm thick in dimensions of 25.4 x 76.2mm(1” x 3”); 25 x 75mm, 26 x 76mm.
Microscope slides with special thickness, dimensions and tolerances are also available.
Microscope slides are manufactured from normal glass or super white glass.
Chemical Composition of normal glass:

Silicon Dioxide	SiO2	72.00%
Sodium Oxide	Na2O	14.50%
Potassium Oxide	K2O	0.30%
Calcium Oxide	CaO	7.05%
Magnesium Oxide	MgO	3.95%
Aluminium Oxide	AL2O3	1.65%
Ferric Oxide	Fe2O3	0.06%
Density : 2.50 x 103 kg/m3

Special glass material, with special composition is also available.



7102	7102A

Cut Edges (Unground edges)

Cat. No. 7102
Cat. No. 7102A(Super clear Glass Slides)
Slides with 90

corner, are cut by machine.

Ground Edges

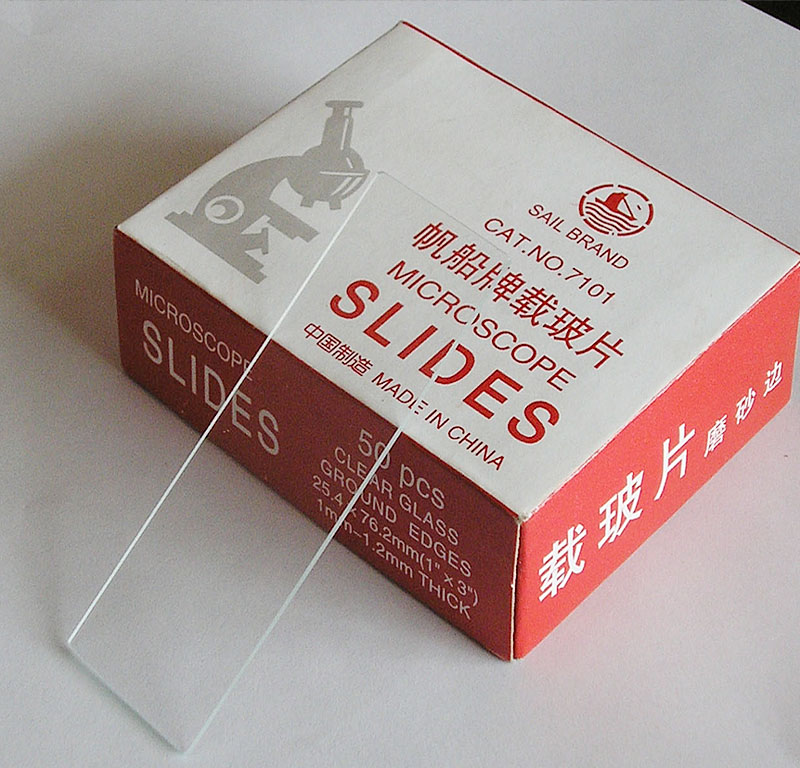

Cat. No. 7101

Cat. No. 7101A(Super Clear Glass Slides )

Ground edges of Microscope slides reduces the danger of cuts and infections to laboratory personnel
Slides can be with 90

corner or 45

corner, are manufactured using grinding process which results in a high quality fine ground edge.



7101	7101A

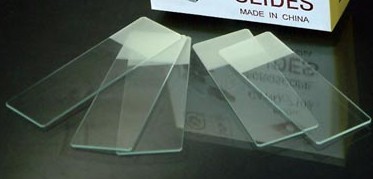

Frosted end/ends

Cat. No. 7105-1

Cat. No. 7105A-1(Super Clear Glass Slides)
Slides 7105-1 is with cut edges, 90

corner, has a single frosted area approx. 20 mm long, on which labeling is easy
Cat. No. 7105
Cat. No. 7105A(Super Clear Glass Slides)
Slides 7105 is with Ground edgs, can be with 90

corner or 45

corner, has a single frosted area approx. 20 mm long.

Cat. No. 7107-1
Cat. No. 7107A-1(Super Clear Glass Slides)
Slides 7107-1 is with cut edges，90

corner, forsted end on both sides approx. 20 mm long, on which labeling is easy.
Cat. No. 7107
Cat. No. 7107A(Super Clear Glass Slides)
Slides 7107 is with Ground edgs, can be with 90

corner or 45

corner, forsted end on both sides approx. 20 mm long.



7105A-1 7105-1	7107A-1



7105A	7105



7107A	7107

Beveled edges

Cat. No. S016
Cat. No. S016A(Super Clear Glass Slides)
The slides are with beveled edges. Each piece has eight beveled edges with 45 corner.

HDAS016
